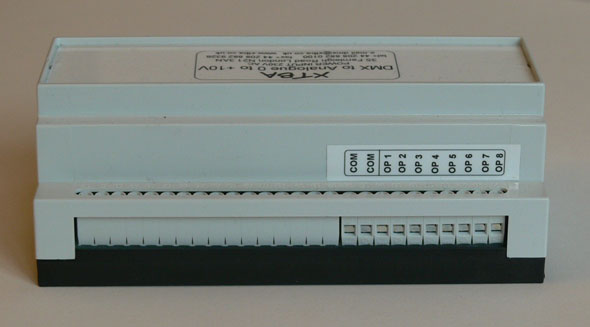

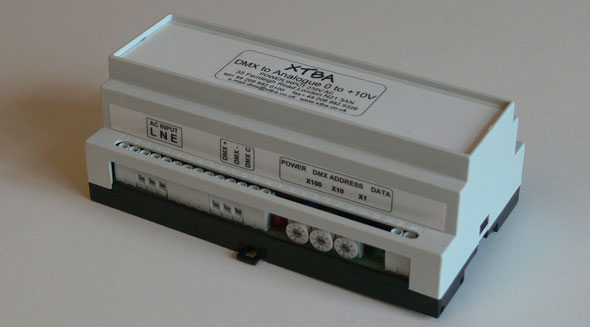

8 way DMX to Analogue DIN Rail

Product number: 05901 - £175.00

*Now upgraded to include fully enabled RDM and with added features such as emergency mode and grouping.

A mains powered DIN rail mounted 8 channel 0 to +10V decoder. Channels can be set into two groups of four or individual channels set as non dims. Emergency mode allows all outputs to fade to a predetermined level in the event of DMX loss.
Local output test mode from the address switches. RDM enabled.

Output 0 to +10V DC. Individual outputs can also be set to act as non dims.

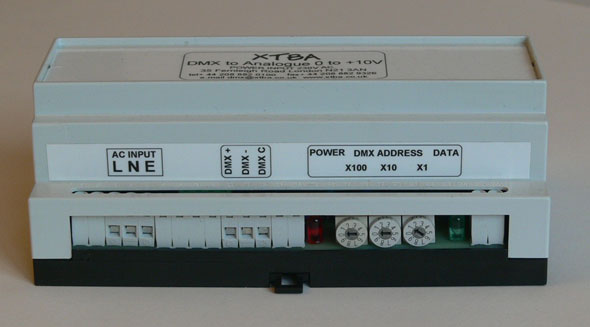

9 DIN Module, Width = 157mm, power & data leds, DMX address switches

See also our PCB version of this product - http://xtba.co.uk/products/dmx8-decoder-pcb

Note: Revised manual now updated

8 way DMX to Analogue DIN Rail 8 way DMX to Analogue DIN Rail

Works with


120v AC (90v - 140v) 240v AC (190v - 250v)
Additional info:

120V Operation is Internally Selectable by PCB links

Packaging & Dimensions

Din Rail Mounting
Length: 155mm Depth: 1mm Height: 1mm Weight: 0.3Kg (Approx)
This item is CE certified XTBA declares that this equipment meets the requirements of the EMC Directive 89/366/EEC.
