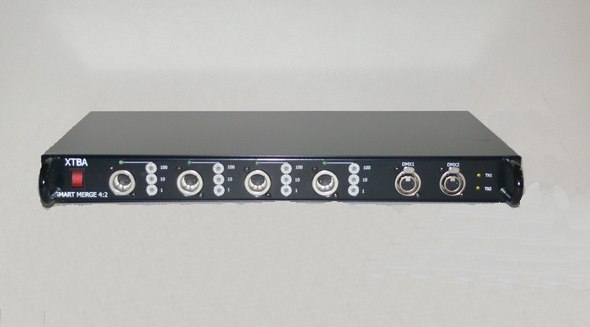

Smart Merge 4:2

Product number: 02603 - £1150.00

XTBA Smart Merge 4:2 will take up to four DMX inputs and merge into two output data streams.

Each input has its own offset so data channels can be set end to end or overlapped. When using the offsets any channels over the 512 limit are carried over to output two. The Smart Merge 4:2 can be user set to hold last frame on any or all of the inputs in the event of data loss.

Works with


120v AC (90v - 140v) 240v AC (190v - 250v)
Additional info:

120V Operation is Internally Selectable

Packaging & Dimensions

19" 1U Rackmount
Length: 430mm Depth: 270mm Height: 44mm Weight: 4Kg (Approx)
This item is CE certified XTBA declares that this equipment meets the requirements of the EMC Directive 89/366/EEC.
