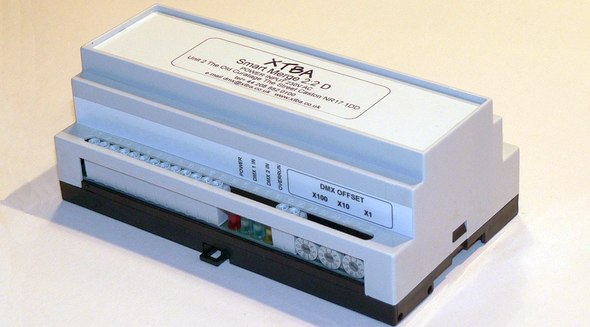

Smart Merge 2:2 DIN RAIL

Product number: 02607 - £550.00

Smart Merge 2:2 DIN RAIL

Now available in DIN rail case format but offering the same features as the 19” rack versions -

XTBA's SMART MERGE 2 has all the features of the SMART MERGE, but with the addition of a second output to provide maximum control channel usage.

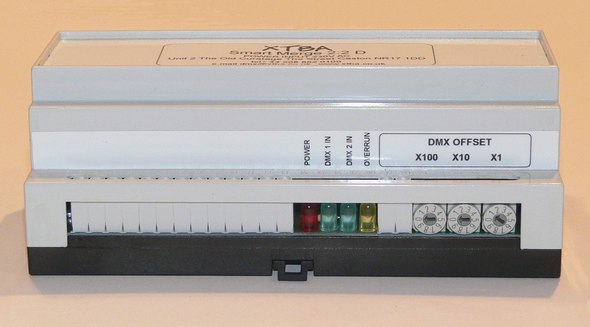

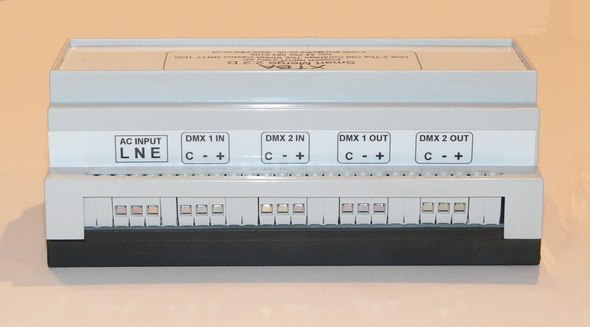

When using the DMX2 offset, channels over the 512 limit on output 1 are carried over to the DMX OUT 2 which is a second new output data stream. Thus the Smart Merge 2 can be used in larger systems to join desks 'end to end' without data loss or to fill in channel 'DMX gaps' from protocol convertors.

UPDATE: Q1 2018:

XTBA Merges both in D case and 19” rack can now be set to HTP (highest takes precedent) or LTP (latest takes precedent) merging. In addition they can be switched to A/B Switch.

In A/B Switch any channel that changes on either input will output all channels of that input to the DMX output. In this case you can run a main control desk with a backup control on line but with all channels set to 0. The main desk will operate as normal passing levels through the merge. If the main desk fails then starting a fade on the backup desk will take control of all channels sent to the output.

Smart Merge 2:2 DIN RAIL Smart Merge 2:2 DIN RAIL

Works with


240v AC (190v - 250v)

Packaging & Dimensions

Din Rail Mounting
Length: 105mm Depth: 1mm Height: 1mm Weight: 1Kg (Approx)
This item is CE certified XTBA declares that this equipment meets the requirements of the EMC Directive 89/366/EEC.
