Smart Merge 2:1 DIN RAIL

Product number: 02606 - £495.00

Smart Merge 2:1 DIN RAIL

Now available in DIN rail case format but offering the same features as the 19” rack versions -

XTBA's SMART MERGE is designed to take two DMX512 data streams and combine them into one complete DMX512 output.

This allows two DMX transmitting devices (e.g. lighting controls, scroll controllers, moving light controllers) to be effectively linked together; the resulting data stream fed to dimmers decoders, scrollers etc. on one data line.

UPDATE: Q1 2018:

XTBA Merges both in D case and 19” rack can now be set to HTP (highest takes precedent) or LTP (latest takes precedent) merging. In addition they can be switched to A/B Switch.

In A/B Switch any channel that changes on either input will output all channels of that input to the DMX output. In this case you can run a main control desk with a backup control on line but with all channels set to 0. The main desk will operate as normal passing levels through the merge. If the main desk fails then starting a fade on the backup desk will take control of all channels sent to the output.

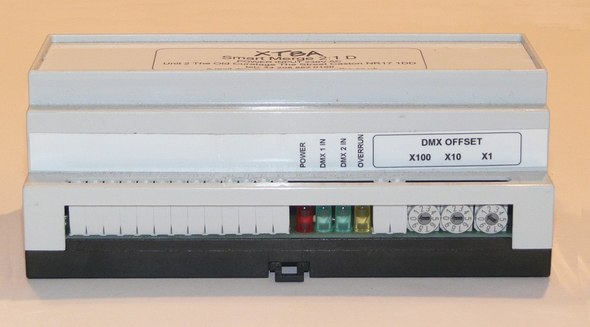

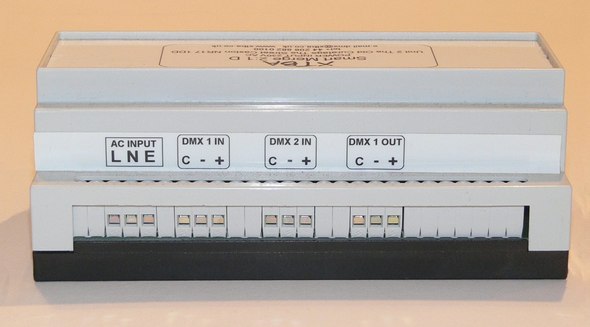

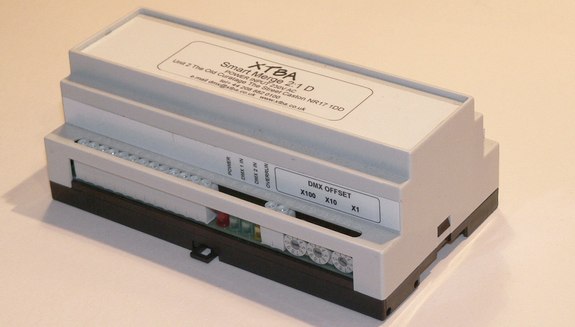

Smart Merge 2:1 DIN RAIL Smart Merge 2:1 DIN RAIL

Works with


240v AC (190v - 250v)

Packaging & Dimensions

Din Rail Mounting
Length: 105mm Depth: 1mm Height: 1mm Weight: 1Kg (Approx)
This item is CE certified XTBA declares that this equipment meets the requirements of the EMC Directive 89/366/EEC.
