Smart Merge

Product number: 02601 - £625.00

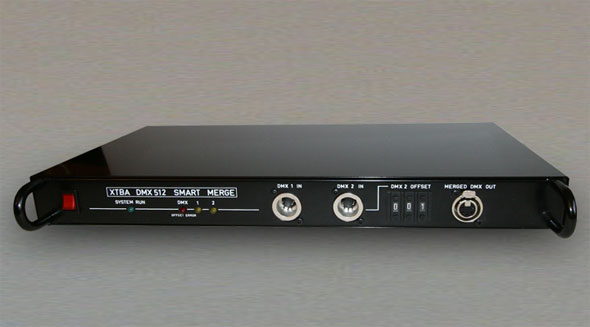

XTBA's SMART MERGE is designed to take two DMX512 data streams and combine them into one complete DMX512 output.

This allows two DMX transmitting devices (e.g. lighting controls, scroll controllers, moving light controllers) to be effectively linked together; the resulting data stream fed to dimmers decoders, scrollers etc. on one data line.

The two sets of data can be offset end to end or highest takes precedence .

Front or Rear connectors can be supplied, but unless specified when ordering our standard is to provide connectors on the front panel.

This product is now available in a DIN Rail case - see

Works with


120v AC (90v - 140v) 240v AC (190v - 250v)
Additional info:

120V Operation is Internally Selectable

Packaging & Dimensions

19" 1U Rackmount
Length: 430mm Depth: 270mm Height: 44mm Weight: 4Kg (Approx)
This item is CE certified XTBA declares that this equipment meets the requirements of the EMC Directive 89/366/EEC.
