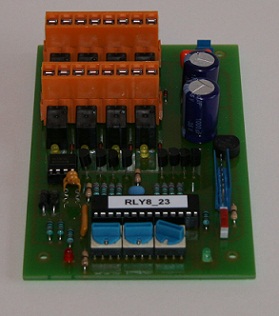

DMX8 Relay PCB

Product number: 09407 - £165.00

An eight channel DMX to normally open (NO) or closed (NC) relays PCB only.

The relay switch level can be user set in 10% steps. The card can be user set for normally open or closed relays. The relays will switch at the set level and switch back at 1% less to allow for noisy desks.

Includes BCDs and LEDs.

Relays rated at 100ma.

Displays for power and data in.

If the BCD switches are set for 600 the card will enter test mode and allow for local control e.g. 601 = relay one closed/open, 602 relay closed/open etc. (75mm x 120mm x 35mm clearance height)

Works with


9-15v DC

Packaging & Dimensions

PCB Cardset
Length: 120mm Depth: 75mm Height: 35mm Weight: 1Kg (Approx)
