DMX Relay 4 - DIN Rail RDM

Product number: 10503 - £185.00

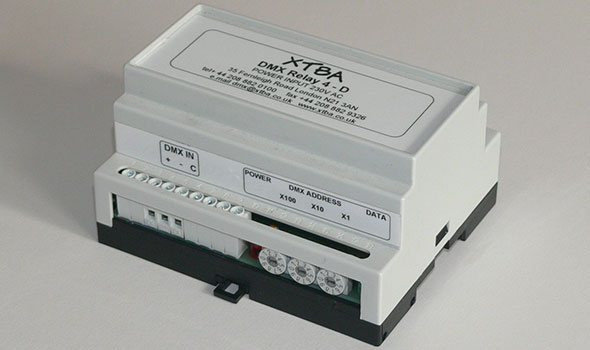

The XTBA DMX Relay 4-DIN Rail takes DMX in to control four change over relays in a DIN rail case. Now includes RDM. Mains powered (or can be supplied to run from 24 to 48VDC for use with LED PSUs), the Relay 4-D offers a simple method to interface external systems to DMX control.

The Relay 4-D can be configured as four single relays, two groups of two relays or a single group of four relays. In addition an ‘emergency mode’ mode is available closing a single relay or groups of relays if DMX data is lost.

By using the normally open and normally closed relays with group mode simple DMX switch over backups can be simply set up.

DMX Relay 4 - DIN Rail RDM DMX Relay 4 - DIN Rail RDM

Works with


240v AC (190v - 250v)
Additional info:

Please specify when ordering if you require the 24v / 48v supply option

Packaging & Dimensions

Din Rail Mounting
Length: 105mm Depth: 1mm Height: 1mm Weight: 1Kg (Approx)
This item is CE certified XTBA declares that this equipment meets the requirements of the EMC Directive 89/366/EEC.
