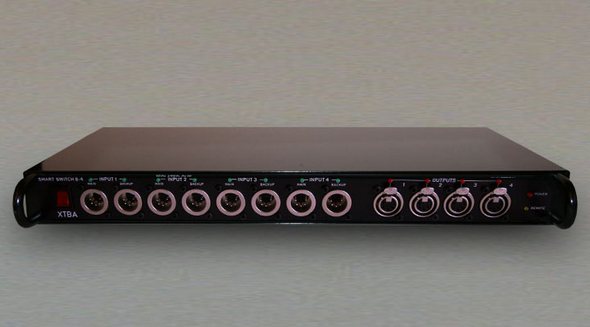

SMART SWITCH 8:4

Product number: 07202 - £675.00

XTBA's Smart Switch 8:4 allows up to four universes of DMX to have an on-line back up.

In the event of a data failure on any of the active main inputs the Smart Switch 8:4 will check the available backup inputs. If all are available the unit will switch all inputs to back up. If a back up is not available on an active channel then only the input that has failed will be switched to backup.

The unit also has a remote facility to allow the main/backups to be switched manually. This allows multi universe DMX systems to have full on line back up.

Works with

Voltage

120v AC (90v - 140v) 240v AC (190v - 250v)
Additional info:

120V Operation is Internally Selectable

Packaging & Dimensions

19" 1U Rackmount
Length: 430mm Depth: 270mm Height: 44mm Weight: 4Kg (Approx)
This item is CE certified XTBA declares that this equipment meets the requirements of the EMC Directive 89/366/EEC.
