Smart Splitter 10iD

Works with:

£365.00 Excluding VAT

Product Number:

Further information:

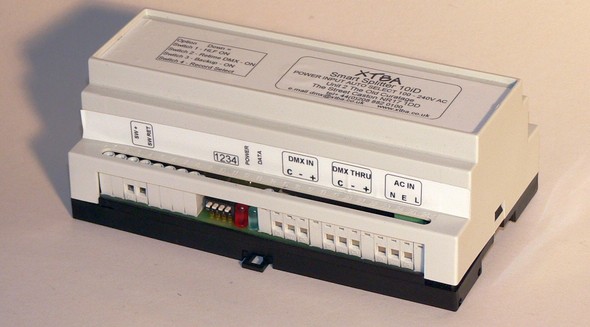

XTBA Smart Splitter 10iD

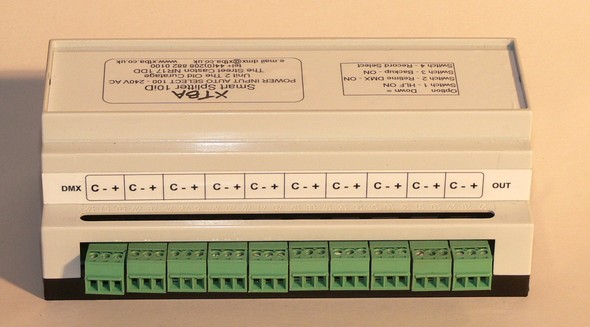

XTBA Smart Splitter 10iD

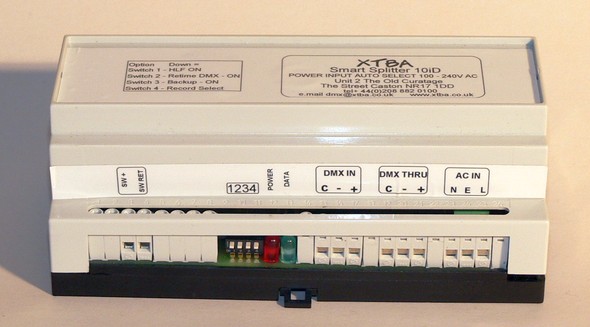

XTBA Smart Splitter 10iD

Following the success of the Smart Splitter 4D and 5D/RDM we are pleased to announce that we now have in production the Smart Splitter 5iD and 10iD.

Both units housed in a compact D rail case for compact installations and offer outstanding features and user options.

Both units offer the following features:
Fully opto isolated from both the input and each output
Active loop through with override in the event of power loss

User selectable options:
• Hold the last frame on data loss.
• Fade to blackout in 5 seconds on data loss if backup or hold last not set.
• Clean up and slow up DMX data.
• Record and play back two backup memories.
• A remote switch input to allow for backup memory playback, with led.
• Remote backup disable – temporally turn off the backup to turn the desk off.
• Loop through output can be switched between input or backup/retransmit.

Both units are build using our proven splitter technology and will provide years of continuous and reliable operation – as do all our products.


Please note that due to the compact size, this unit is not RDM compatible



1.75Kg (approx)

Supply voltage

120v AC (90v - 140v)
240v AC (190v - 250v)

Additional Information:
120/230VAC or 9V to 48V DC dependant on unit type


PCB Cardset



XTBA declares that this equipment meets the requirements of the EMC Directive 89/366/EEC.
